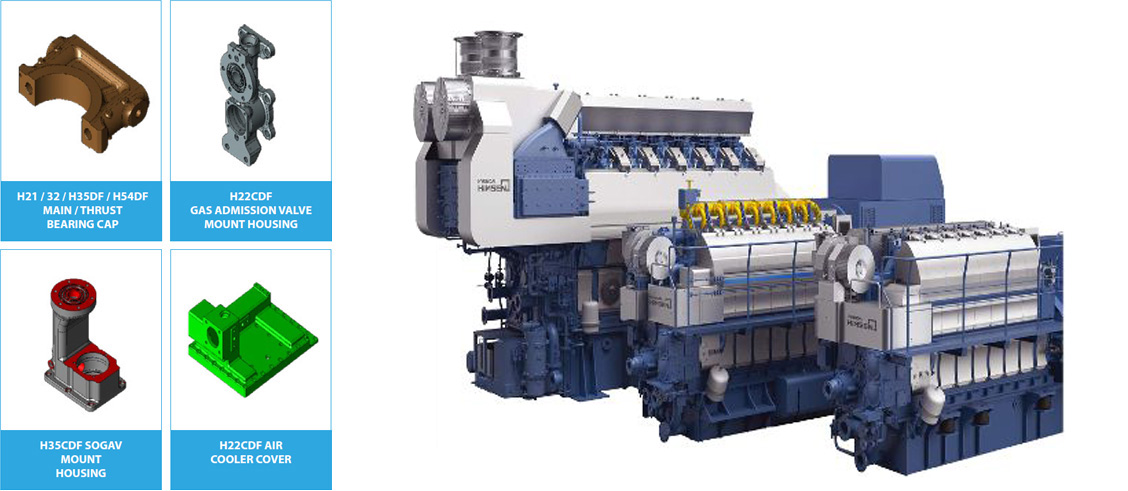

HYUNDAI HIMSEN ENGINE
| HiMSEN ENGINE | |
|---|---|
| 4 STROKE ENGINE | |
| Dual-fuel engine | Diesel engine |
| H22CDF | H21/32 |
| H32DF-LM | H21C |
| H35DF | - |
| H54DF | - |
| Product Name | Width | Depth | Height | Material Weight |
|---|---|---|---|---|
| H22CDF AIR COOLER COVER | 476 | 613 | 282 | 73 |
| H22CDF GAS ADMISSION VALVE MOUNT HOUSING | 140 | 334 | 108 | 15 |
| H35DF SOGAV MOUNT HOUSING | 175 | 234 | 263 | 28.1 |
| H21/32 MAIN / THRUST BEARING CAP | 413 | 275 | 85 | 52 |
| H35/HL4DF MAIN / THRUST BEARING CAP | 635 | 390 | 127 | 148/435 |
| Item | Weight (kg) | Material and Characteristics | Remarks | ||||
|---|---|---|---|---|---|---|---|
| Material | T/S (MPa) | CVN (J/℃) | Hardness (HB) | ||||
| Std. | Grade | ||||||
| SOGAV COVER | 13 | JIS | FCD450 | 450 | - | - | Material processing and painting |
| GAS ADMISSION VALVE (H35DF) | 23.51 | JIS | FCD400 FCD450 |
450 | - | - | Material processing and painting |
| GAS ADMISSION VALVE (H22CDF) | 11.6 | JIS | FCD400 | 450 | - | - | Material processing and painting |
| MAIN/THRUST BEARING CAP | 118.4 | JIS | FCD400 | 450 | - | - | Material processing and painting |
| CASING ON FREE END TWO PART | 598.12 | JIS | FCD450 | 450 | - | - | Material processing and painting |

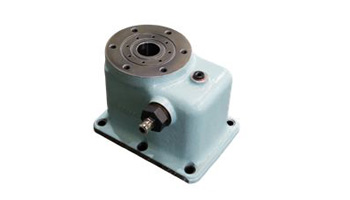

SOGAV COVER

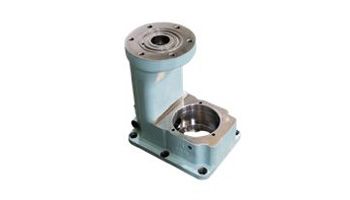

GAS ADMISSION VALVE (H35DF)

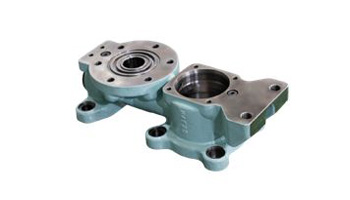

GAS ADMISSION VALVE (H22CDF)

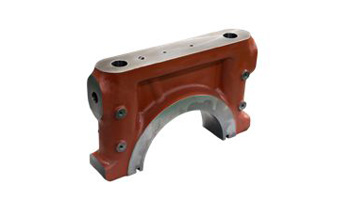

MAIN/THRUST BEARING CAP

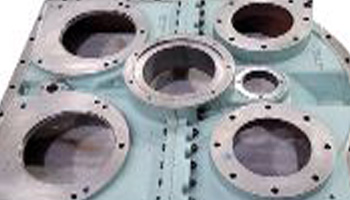

CASING ON FREE END TWO PART
